Image for illustration purposes only

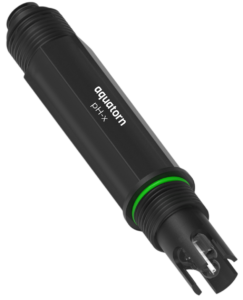

pH-x measures the acidity or alcalinity of water by using an electrochemical electrode system. Thanks to its continuous pH monitoring, it is easier to detect gradual changes before they develop into larger water quality issues
| Technical data | |
| Measuring range | 0 ... 14 |
| Working pressure | 10 bar |
| Working temperature | 0 ... 80 °C |
| Accuracy | 0,01 |
| Resolution | 0,01 |
| Response time | 8 s (98% flowing liquid) |
| Temperature compensation | Thermal resistance |
Electrical data | |
| Power supply | 7 ... 28 VDC (< 0,15 W) |
| Power consumption | < 0,2 W |
| Output signal | Rs485, 4 ... 20 mA |
| Protection grade | IP68 |
| Cable length | 5 m or custom (per request) |
| Electrical connection | M16 |
Mechanical data | |
| Material | Glass, PC, ABS |
| Pipe thread | Lower/upper: NPT 3/4 |
Heation AB makes every effort to ensure the accuracy of the information at the time of publication. Please note that the data is subject to changes without previous notice.
Contact us for product-specific information.
